• Products Details

Product Description

Front Panel:

4U 24盘位机

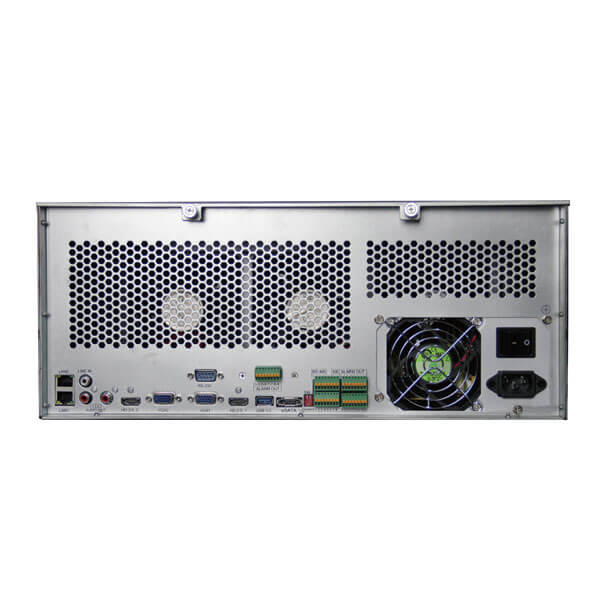

Back Panel:

4U 24盘

Software interface:


Product highlights:

Support H.265+/H.265/H.264 coding front end adaptive access.

Support ONVIF, Highprofile S, Highprofile G, and can be connected to network cameras that comply with ONVIF, RTSP standards made by many major manufacturers.

Support NVR local Intelligence: target count, object left/lost, area detection, line crossing.

Support IPC front-end Intelligence: various intelligent detection access and linkages such as line crossing , wondering, face, license plate, audio input abnormality, virtual focus and scene change.

Support AEeye P2P cloud services, through cloud access, cloud monitoring, cloud forwarding to achieve any terminal access to NVR anytime, anywhere.

Support immediate playback function under preview screen without affecting other channel preview.

Support for adaptive bit stream preview and playback 4 screen maximum support 1 920 * 1080 , single screen 3840*2160.

Provide networked centralized monitoring and management software.

NVR Technical Parameter:

Model No.


Video & Audio Input

Video Input

128ch( Compatible with 4K and below 4K resolution )



Audio Input

IPC composite stream network audio input

Video & Audio Output

Audio Output

2ch RCA

HDMI Output

2ch HDMI , 2ch VGA, Resolution : 3840×2160/30Hz , 1920×1080/60Hz

Video & Audio Coding

Video Resolution


Video Format

H.265/H.264 /MJPEG


Max support 16ch 1080P playback

External Port

Internet Port

2x ; RJ45RJ45 10M/100M/1000M adaptive Ethernet port

USB Port

3x , 2x USB2.0 front , 1x USB3.0 back

Serial Port


Alarm Input

16ch alarm input, active low, green terminal interface

Alarm Output

8ch alarm output, relay contact (1A@24VDC


HDD Port

24x SATA+1x eSATA HDD Port

MAX Capacity

Each port up to 8TB

Network Management

Network Protocol

ONVIF (supports version 2.4), IPv4, UPnP (plug and play), NTP (network time), SADP (automatic search IP address), PPPoE (dial-up), DHCP (automatically obtain IP address), etc.

Power Supply

ATX110-220V 400W 50-60Hz

Working Temperature

-10 ℃ -- + 55 ℃

Working Humidity


Power Consumption (no HDD)

≤50W (without HDD)


Device : 431.5mm×600mm×177.5mm Packing:720mmX545mmX280mm

Weight (Without HDD)

N.W. : 23KG

Outside Carton

1 pcs/carton. Dimension : 752mmX577mmX312mm

Installation Method

Desktop installation
