• Products Details

Product Description

Front Panel:

1.5U 4盘位

Back Panel:

4864 (1)

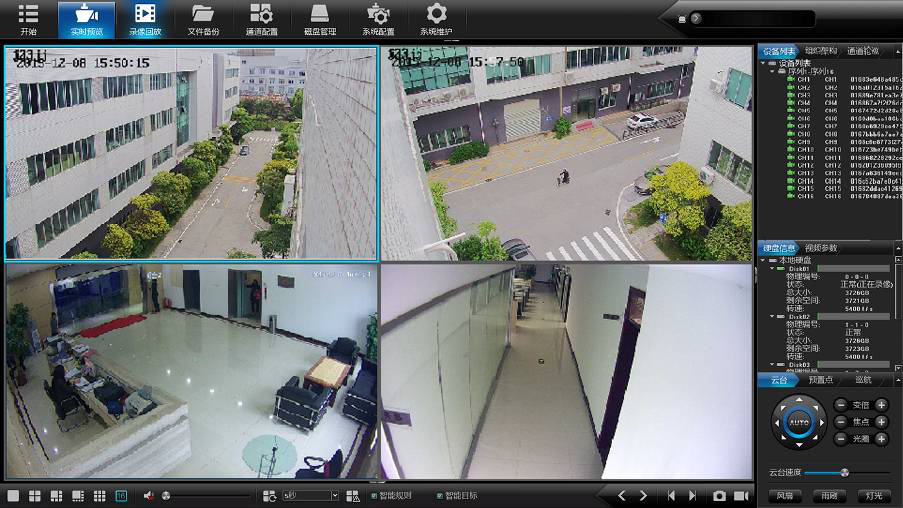

Software interface:


Product highlights:

Support H.265+/H.265/H.264 coding front end adaptive access.

Support ONVIF, Highprofile S, Highprofile G, and can be connected to network cameras that comply with ONVIF, RTSP standards made by many major manufacturers.

Support NVR local Intelligence: target count, object left/lost, area detection, line crossing.

Support IPC front-end Intelligence: various intelligent detection access and linkages such as line crossing , wondering, face, license plate, audio input abnormality, virtual focus and scene change.

Support AEeye P2P cloud services, through cloud access, cloud monitoring, cloud forwarding to achieve any terminal access to NVR anytime, anywhere.

Support immediate playback function under preview screen without affecting other channel preview.

Support for adaptive bit stream preview and playback 4 screen maximum support 1 920 * 1080 , single screen 3840*2160.

Provide networked centralized monitoring and management software.

NVR Technical Parameter:

Model No.


Operating System
Embedded LINUX operating system

Video Standard

H.265+/ H.265/H.264

Intelligent Support

IPC support

Various intelligent detection access and linkages such as line crossing, wondering, face, license plate, audio input abnormality, virtual focus and scene

NVR support

Target count, object left/lost, area detection, line crossing

Video & Audio Input

Video Input

64ch 4K and below resolution H.265+/H.265/H.264 IP camera



Audio Input

IPC composite stream network audio input

Video & Audio Output

VGA Output

1CH , Resolution : 1920×1080/60Hz , 1280×1024/60Hz , 1280×720/60Hz ,1024×768/60Hz

Audio Output

1CH , RCA port ( Linear level , impedance : 1KΩ )

Preview Split

1/4//9/16/25/3 6/64 screen

HDMI Output

1CH , Resolution : 4K(3840×2160)/30Hz , 1920×1080/60Hz , 1600×1200/60Hz ,1280×1024/60Hz , 1280×720/60Hz , 1024×768/60Hz

Video & Audio Coding

Video Resolution

8MP/5MP/4MP/3MP/1080P and below resolution


16ch/9ch/4ch Synchronized Playback ( Different in various access modes )

External Port

Internet Port

1 x RJ45 10M/100M/1000M adaptive Ethernet port

USB Port

Front 1x USB2.0; Rear 1x USB2.0


HDD Port

4 x SATA

MAX Capacity

Each port up to 8TB

Network Management

Network Protocol

UPnP (Plug & Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address)

Outside Carton

1 pcs/carton. Dimension : 620mm X 570mm X 292mm

P2P Remote Monitoring


Supports iPhone, iPad, Android Smart phone

Supports Windows 7 and above computer client, supports Apple MAC computer client

Installation Method

Desktop installation , Standard cabinet installation

Power Supply

DC 12V6A ( in ternal adapter)

Working Temperature

-10 ℃ -- + 55 ℃

Working Humidity


Power Consumption (no HDD)

≤30W (without HDD)


Device : 440mm×356mm×68.5mm Packing :555mmX450mmX130mm

Weight (Without HDD)

N.W. : 5.7Kg; Packing : 6.9Kg
